Accuracy Hz and V
Absolute, continuous, diametrical …………………………….1’’ / 2’’ / 3’’ / 5’’
Display resolution: 0.1’’ (0.1 mgon)
Quadruple axis compensation
Compensator setting accuracy2: 0.5’’ / 1’’/ 1.5’’ / 2’’
Compensator range: +/- 3.78’ (+/- 0.07 gon)
Electronic level resolution: 2“
Circular level sensitivity: 6` / 2 mm
DISTANCE MEASUREMENT
Range:
Prism (GPR1, GPH1P): 1.5 m to 3.500 km
Prism GPR1 (Long Range mode) > 10.000 km
Non-Prism / Any surface:
R5003………………………………………………………………….. ✔
R1000 …………………………………………………………………. •
Single prism
Precise+ / Once: 1 mm + 1.5 ppm (typical 2.4 s)
Precise&Fast / Once&Fast: 2 mm + 1.5 ppm (typical 2 s)
Tracking / Continously: 3 mm + 1.5 ppm (typical < 0.15 s)
Averaging: 1 mm + 1.5 ppm
Long Range mode / > 4 km: 5 mm + 2 ppm (typical 2.5 s)
Laser dot size
Non-Prism / Any surface
0 m – 500 m: 2 mm + 2 ppm (typical 3 – 6 s)
> 500 m: 4 mm + 2 ppm (typical 3 – 6 s)
At 30 m: 7 mm x 10 mm
At 50 m: 8 mm x 20 mm
At 100 m: 16 mm x 25 mm
Telescope
Magnification: 30x
Resolving power: 3”
Focusing range: 1.55 m / 5.08 ft to infinity
Field of view: 1°30’ / 1.66 gon / 2.7 m at 100 m
Display and keyboard
5“ (inch), 800 x 480 pixels WVGA, colour, touch, 25 keys5b, (optional5c: 37 keys with function keys)
2nd keyboard…………………………………………………….•
Key illumination ………………………………………………. ✔
Operation
Endless drives for HZ & V…………………………………….. ✔
Trigger-Key: user definable with 2 functions……………….✔
Power management
Exchangeable Lithium-Ion battery
Operating time with GEB361 …………………………up to 18 h
nn Operating time with GEB331…………………….. up to 9 h
Battery charging time with
GKL341 charger for GEB361 / GEB331 …………………….3 h 30 min / 3 h
nn GKL311 charger for GEB361 / GEB331………………….6 h 30 min / 3 h 30 min
External supply voltage
Nominal voltage 13.0 V DC & 16 W max……………………. ✔
Data storage
Internal memory: 2 GB Flash ……………………………………..✔
Memory card: SD card 1 GB or 8 GB ……………………………✔
USB memory stick: 1 GB …………………………………………..✔
Processor
TI OMAP4430 1GHz Dual-core ARM Cortex A9 MPCore……✔
Operating system – Windows EC7 ……………………………..✔
Interfaces
RS2327, USB device ………………………………………………..✔
Bluetooth , WLAN …………………………………………………..✔
Mobile Data sidecover: LTE-Modem for internet access ……..•
Guide Light (EGL)
Working range: 5 m to 150 m…………………………………………✔ (R1000)
Position accuracy: 5 cm at 100 m……………………………………✔ (R1000)
Wavelength red /orange: 617 nm / 593 nm………………………..✔ (R1000)
Laser plummet (Laserclass 2)
Accuracy:
Plumb line deviation: 1.5 mm at 1.5 m instrument height……….✔
Diameter of laser point: 2.5 mm at 1.5 m instrument height……..✔
AutoHeight module for automatic instrument height measurement (Laserclass 2)
Accuracy:
Distance accuracy: 1.0 mm @ 1 m …………………………………✔
Distance range: 0.7 m to 2.7 m………………………………….✔
Weight …………………………………………………………..4.4 – 4.9 kg
Environmental specifications
Working temperature range: –20°C to +50°C…………………….✔
Arctic version: –35°C to +50°C ……………………………………….✔
Dust / Water (IEC 60529) / Humidity: IP66 / 95%, non-condensing…………✔
Military Standard 810G, Method 506.5……………………………✔
✔ = Included • = Optional ✗ = Not available
araddoorbin
اشتراک گذاری

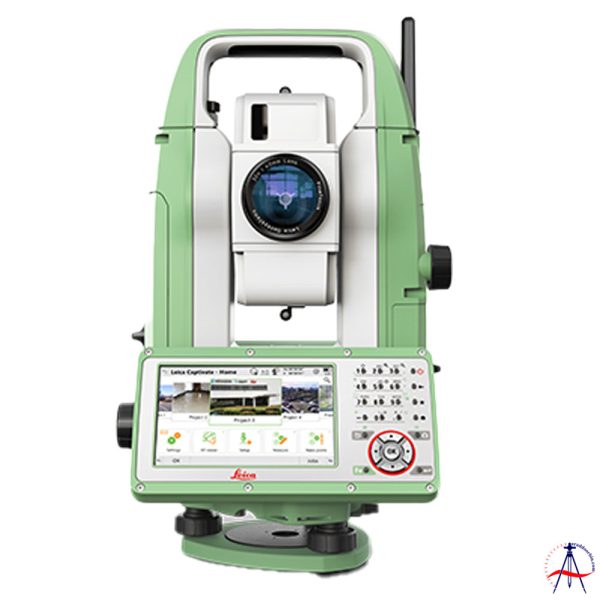

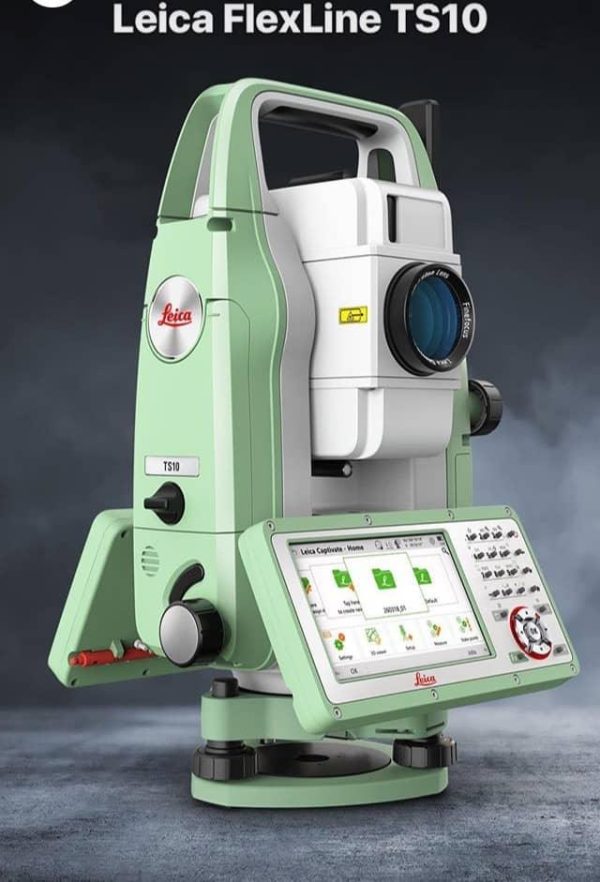

دوربین نقشه برداری Leica TS10
